Are there any 3D case designs?

Richard HughesRichard Hughes New Member Posts: 12
Hi Folks!

Are there any 3D case designs for the UP2 ?

-Rich

Comments

  • WereCatfWereCatf New Member Posts: 201
    I would assume there will be some once people actually receive their boards, as it's not very easy to design one without being given any dimensions or anything. That said, I, certainly, will design one for mine once I receive mine in a couple of months.
  • Richard HughesRichard Hughes New Member Posts: 12
    I was hoping that there were some dimensions available from the manufacturer. Maybe an STL file for the board that I could model around.
  • FabrizioFabrizio AAEON Posts: 123 mod
    Hi,

    last week we showed at Embedded Worlds the prototypes of the plastic and metal chassis of UP Squared.
    Soon we will share some drawings.
    Stay tuned, UP Squared is almost there.
    Cheers
  • MichaelMichael New Member Posts: 1
    I am currently planning to create my own enclosure for the UP squared. Or more precise I would like to create a frame to fix it into a Peli case. To design the frame I would need the detailed dimensions of the board.
  • AlingAling Administrator, AAEON, UP reseller Posts: 524 admin
    Hi,

    We will create all UP Squared documentation soon.
    For 3D drawing download, you can use here. https://sketchfab.com/models/fbcd5d17e77a4cafa5296b8f76ed308b
  • Richard HughesRichard Hughes New Member Posts: 12
    I did a first pass at a case, printing it now.

    I may have to modify the bottom of the case for the heat sink.

    https://www.tinkercad.com/users/6jhEmcY4J3F-flyingrich-2
  • Michael MillerMichael Miller New Member Posts: 93
    I spent some time converting the file to sketchup and adding the heatsink. I had to remake or scavenge a few parts that didn't want to export from autocad. I am gonna start designing a case tomorrow. If anyone wants the .skp, ill try to figure out a way to upload it somewhere.
  • Richard HughesRichard Hughes New Member Posts: 12
  • FabrizioFabrizio AAEON Posts: 123 mod
    Hey Flyingrich

    great job !

    Fab
  • Richard HughesRichard Hughes New Member Posts: 12

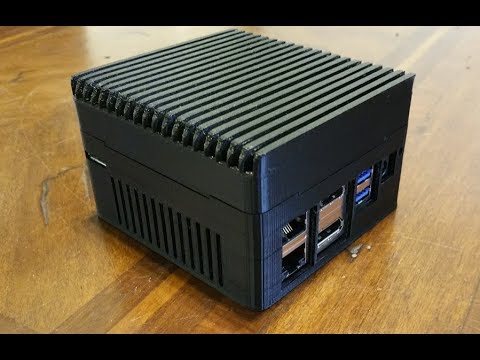

    Unboxing video & 3D printed case
